2,500T Silo – Bucket Elevator and Chain Conveyor

R0.00

request a quote

Description

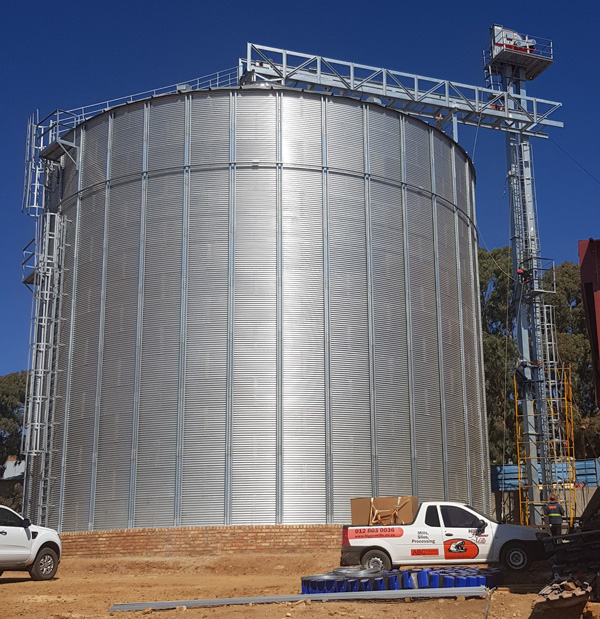

2,500T silo, with bucket elevator and horizontal chain conveyor to silo

System consists of:

Grain storage silo
Ø15.58m
Peak height: 20.21m
With inside, outside and roof ladders
350g/m² galvanizing rating (600gr/m² optional)
Silo unload auger with centre well and intermediate wells, and rack and pinion well controls
Sweep auger
Aeration system – 80liter per m³ per minute
Intake bucket elevator (Bucket elevators 5-150TPH | Industrial Machine Solution) with accessories
Horizontal chain conveyor mounted on catwalk.
Catwalk supported from silo peak and silo sidewall
Set of ducting and spouting for connection of handling equipment

This is a standard layouts that is shown of our silo complexes – these are not final designs, and the layout, silo capacities, handling equipment and capacities can be adjusted to customer specific requirements.
