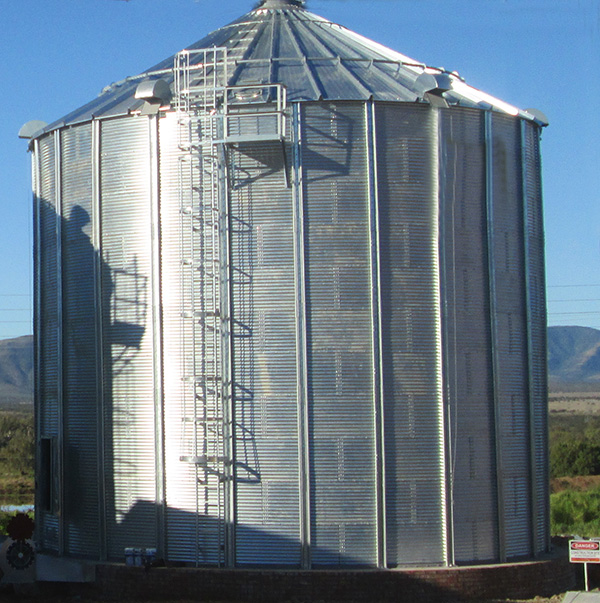

500T silo
Flat bottom or flush floor commercial silo.
Suitable for storage of free flowing granular commodities with densities of up to 830kg/m³ – including maize, soy, wheat, barley, rye, rice, many types of nuts, nut shells and other commodities.
Dimensions:
Diameter: 9,170mm
Eave height: 8,450mm
Peak height: 10,990mm
Total storage space: 610m³
Approximate silo weight: 4,850kg
Specifications:
Galvanizing rating: 350g/m²
Sidewall corrugation pitch: 65mm
Outside stiffened silo – 2 stiffeners per sheet
Roof angle: 30º
Wind rating: 144km/hr
Max peak load: 4,536kg (10,000lbs)
Standard seismic zone: Zone 0 (upgrades available)
Note: other size configurations are available on request – for lower, wider silos, or narrower higher silos, to fit into restrained spaces.
