Maize harvester – 1 row

Description

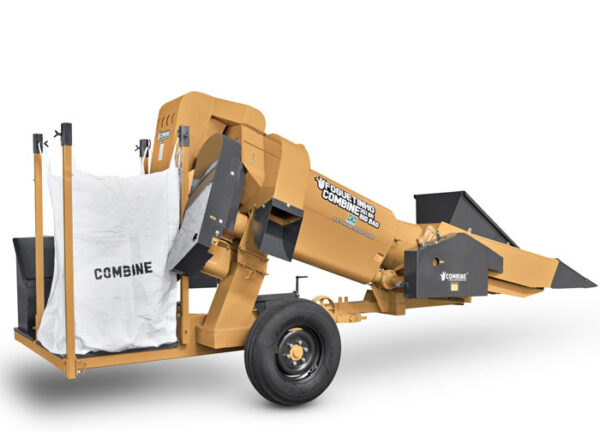

The 351BR maize harvester by Combine Brazil, and offered by Industrial Machine Solution  is the ideal solution for farmers that are caught in the quandary – of being too big to harvest by hand, or with a small threshing machine – but not big enough to be able to afford or justify a reliable combine harvester – and are thus left at the mercy of harvest contractors, or neighbours.

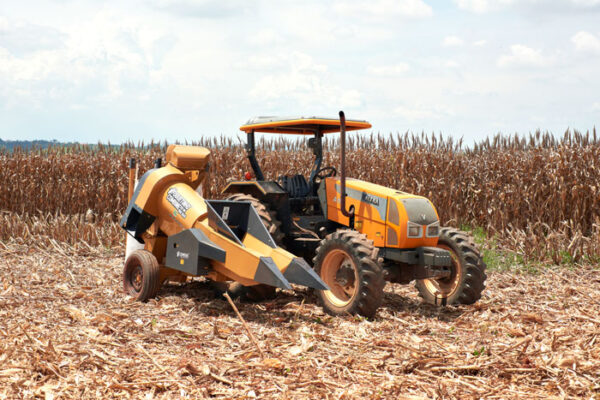

The harvester is a single row harvester – which attaches to the trailer hitch of your tractor, and tows behind.

All harvesting, threshing and cleaning components are driven off of the PTO and hydraulics of the tractor – is available with various options – including a discharge conveyor to discharge direct to trailers, a big bag option for discarging to bulk bags (1ton). As standard – the harvester is fitted with a single 50kg bag discharge.

Specifications:

• Capacity (area) – Up to 6 hectares per day
• Capacity (product) – Up to 3tons per hour
• Collection width: 530mm
• Minimum tractor: 60HP/45KW
• PTO Speed required: 540RPM
• Travel speed  5-10km/hr
• Load capacity – 240kg
• Nozzle height: 300mm – 600mm adjustable
• Includes trimmer to prevent cobs from falling out of the machine

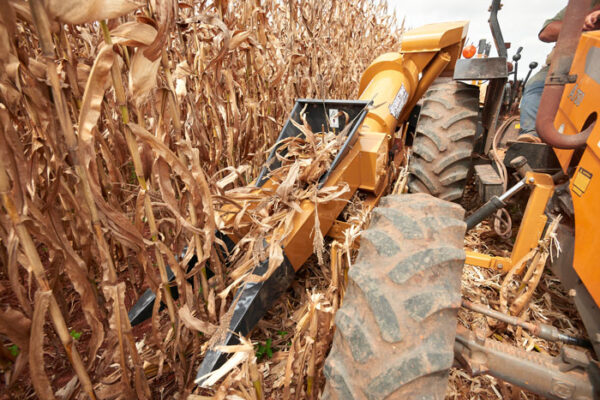

• Harvesting method – roller – to remove the cob from the stalk, which feeds into the auger
• Includes drum sifter – to remove large debris from harvested maize
• Includes discharge fan – that blows out the leaves, cobs, straw etc through the discharge spout
• Operator seat included on the machine for controlling bagging, and settings on the harvester.

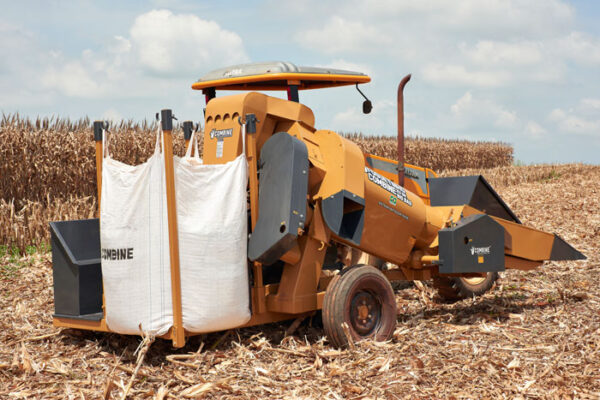

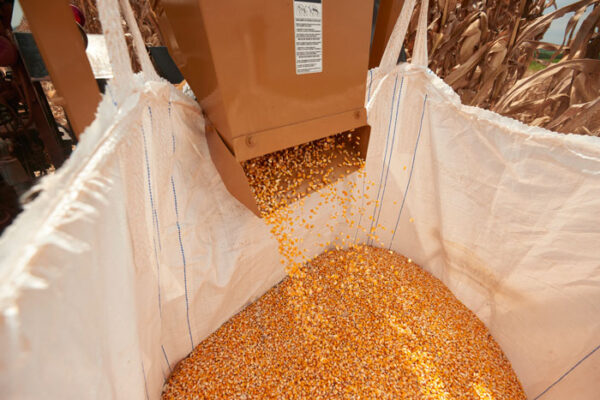

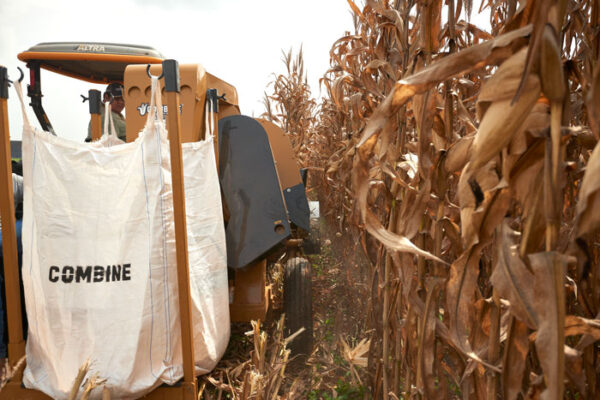

Big bag option

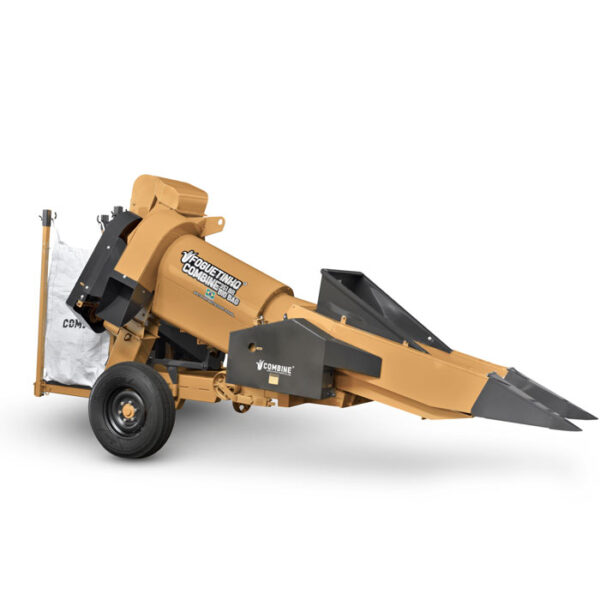

Single bag (standard
