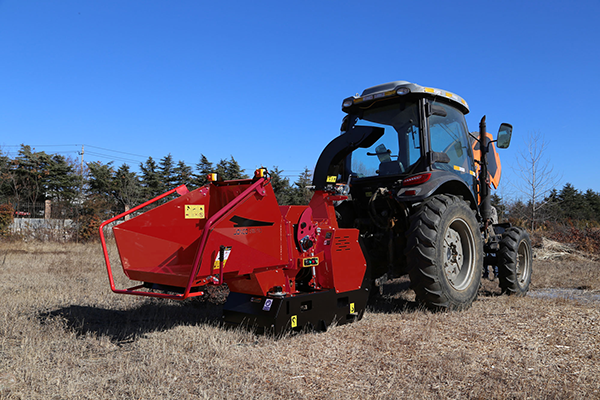

The Grizzly 160 PTO version is a go anywhere, do anything type of chipper – with an hydraulic infeed system – to be mounted onto tractors in the 45-85HP range.
| FEEDING SYSTEM | HYDRAULIC FEED -SELF CONTAINED SINGLE ROLLER |
| DRIVE SYSTEM | DIRECT DRIVE, PTO W/ SHEARBOLT |
| HP REQUIREMENTS FOR MAX. CAP. | 65 |
| HP RANGE | 45-150 |
| CHIPPER CAPACITY | 160Ø |
| CHIPPER HOPPER WIDTH | 1240MM |
| CHIPPER THROAT OPENING | 450MMX370MM |
| NUMBER OF ROTOR KNIVES | 2 REVERSIBLE BLADES |
| KNIFE TYPE | HARDENED TOOL STEEL |
| MOUNTING SYSTEM | 3 POINT HITCH CLASS II |
| DIMENSIONS (HOPPER FOLDED) | 2370MMX1400MMX2000MM |
| CHIPPING SYSTEM | DRUM TYPE |
| DISCHARGE HOOD ROTATION | 360º |
| DISCHARGE HOOD HEIGHT | 2200MM |
| RATED RPM | 540-1000RPM |
| WEIGHT | 530 kg |
For and information sheet on the machine – click here: Grizzly 250 PTO
| Weight | 1150 kg |
|---|---|
| Dimensions | 200 × 150 × 350 cm |
