Cleaner – TMS 240

Description

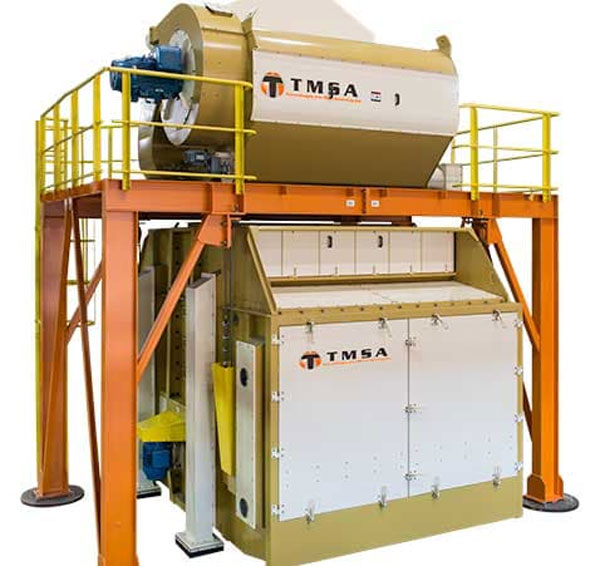

Grain cleaner – Model 18/750/2000

Nominal capacity: Up to 240T/hr – based on soy beans @ 750kg/m³
Estimated cleaning at full capacity – on soy beans @ 13% moisture from 4% to 1% impurities
Estimated cleaning at full capacity – on soy beans @ 18% moisture from 4% to 2% impurities
Sifting area – 27m² ocver 18 screens

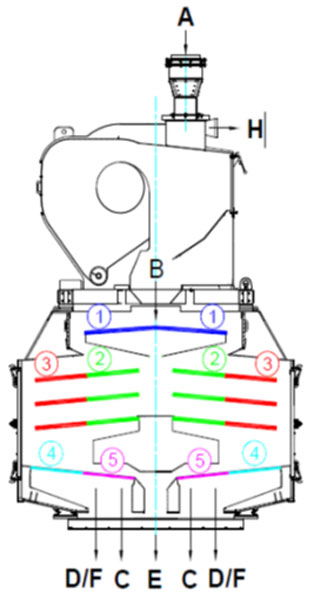

Screens distrbution:

1. 2 x Screens in top deck (3m²) for large particle removal
2. 6 x Screens in intermediate deck (9m²) to remove primary fines
3. 10 x Screens in bottom deck (15m²) for removal of secondary fines

Screen size – 2m x 750mm per screen

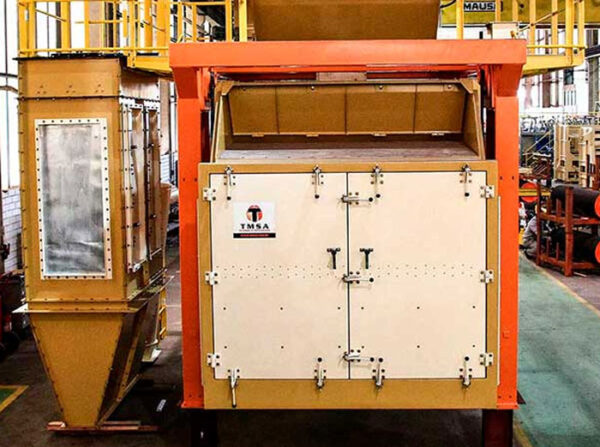

Screens are removable and replaceable by removing front doors on the cleaner.
Screens are self cleaning – with rubber balls in the screen framework.

Drive: Screen drive – 6HP – IP55
(suggest to install VFD/Softstarter for ramped up starting)
Movement type: Oscillating by weighted flywheel.
Movement adjustment: Adjusting of weighted flywheel counterweights
Construction: Mild Steel Painted
Aspiration system
Motorised feeder rotary feeder: 3HP
Screw conveyor for removal of light particles
Wear plates on contact parts
Aspiration fan: 20HP fan with 18,000m³/hr airflow
Outlet configuration
2 x Outlets for light particles (1 x at aspirator, 1 x to dust control system)
4 x Outlets for gross over sized particles (chaff, stalks, stones)
2 x Outlets for medium oversized particles
4 x Outlets for under sized particles
2 x Main outlets for cleaned materials

(Please note – pricing is indicative, and dependant on prevalent shipping rates, forex rates and location of delivery)
