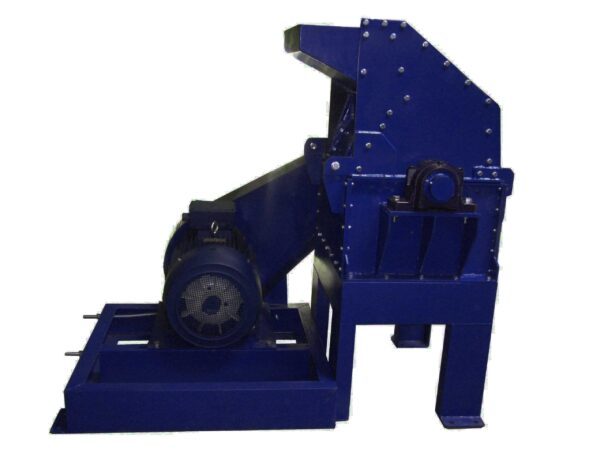

As the second largest mill in the Hippo Hammer mill range, the L63 is used in commercial and industrial applications.
Staying true to the Hippo philosophy of bolt together hammer mills, the mill is a true Hippo, with the lifespan and reliability that customers world wide have come to know and expect.
Applications include – maize milling, bran milling, soy derivative milling, waste wood milling, milling of invader trees into feed, animal feed milling, starch processing, sorghum milling, medical hardware waste destruction, bonemeal processing, tobacco processing.
Virtually any relatively dry product can be milled/granulated.
Power requirements is at 55 KW – but can be increased or decreased depending on application and screen sizes range between 0.6mm and 25mm hole size. In standard application the mill is fitted with a boot, to fit a screw or belt conveyor unload, but air extraction is also supplied as an optional item, especially on applications where products are milled with a screen finer than 2mm, to increase capacity and reduce heat buildup due to the milling process.
Capacities at a glance:
| Screen hole | Capacity (kg/hr) |
| 0.8mm | 1 250 |
| 1.6mm | 2 500 |
| 4mm | 5 000 |
| 8mm | 9 000 |
Rotor RPM: 2 320
Inlet size: 250mm x 560mm
Screen area: 6 126cm²
Tip speed at standard RPM: 65m/second
For a technical information sheet on this mill click here: MH63 – Hippo L63
| Weight | 375 kg |
|---|---|

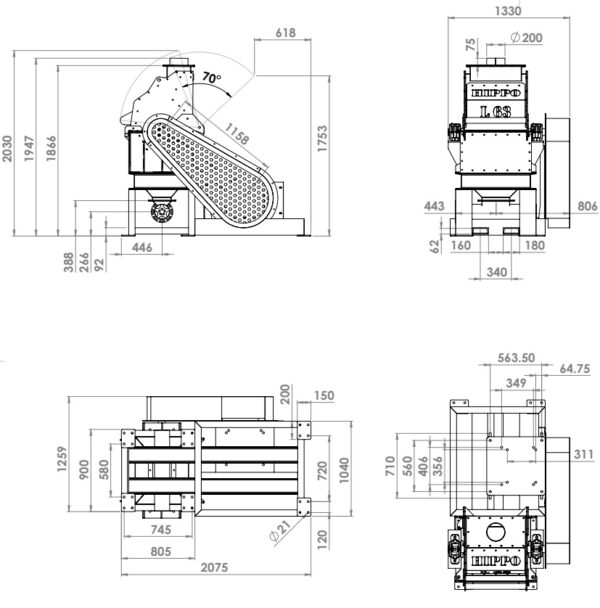

| Dimensions | 200 × 150 × 350 cm |
| Hippo Capacity / Model |
Hippo L63 – 55kW, Electric, Bottom Drop, Hippo L63 – No Motor, Bottom Drop |
